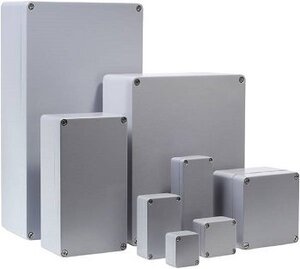

Aluminium Enclosure
Very robust, corrosion-resistant, dust- and waterproof housing made of aluminum in industrial quality for areas of application with the highest requirements. Very often used as a terminal housing / terminal box or distributor housing. With a very high protection class up to IP68, the sensitive components are protected from environmental influences. GBA aluminum housings are available in 36 different sizes as empty housings or machined and equipped (customer-specific) terminal housings. Our aluminum housings are RoHS and REACH compliant.
Price range: 13,29 € through 519,80 €
Technical Characteristics:
- Aluminum alloy AlSi 12 according to DIN EN 1706
- High corrosion resistance through pre-treatment and powder coating in RAL7001 (standard) or special colors according to customer specifications
- Protection classes IP66 / IP67 / IP68 / IP69 according to DIN EN 60529
- NEMA 4X and 6P
- Impact resistance IK09
- captive cover screws made of stainless steel 1.4301 (A2)
- Seal made of neoprene (-40 ° C to + 110 ° C) or optional seal made of silicone (-50 ° C to + 135 ° C)
- EMC housing with conductive seal on request
- Fastening thread M4 / M6 in the base bars to accommodate e.g. circuit boards
- Salt spray test according to DIN EN 9227 completed
- Shock and vibration test completed successfully
- We are happy to offer you accessories on request
| WMYB no. | Length (mm) | Width (mm) | Height (mm) | Drawings | 3D Models | Add To Cart | Unpainted |
|---|---|---|---|---|---|---|---|
| GBA000504530 | 50 | 45 | 30 | Download | Download | ||
| GBA000586434 | 58 | 64 | 34 | Download | Download | ||
| GBA000758057 | 75 | 80 | 57 | Download | Download | ||
| GBA000986434 | 98 | 64 | 34 | Download | Download | ||
| GBA010010081 | 100 | 100 | 81 | Download | Download | ||
| GBA012212081 | 122 | 120 | 81 | Download | Download | ||
| GBA012212090 | 122 | 120 | 90 | Download | Download | ||
| GBA001258057 | 125 | 80 | 57 | Download | Download | ||
| GBA014014091 | 140 | 140 | 91 | Download | Download | ||
| GBA001506434 | 150 | 64 | 34 | Download | Download | ||
| GBA016010081 | 160 | 100 | 81 | Download | Download | ||
| GBA016016091 | 160 | 160 | 91 | Download | Download | ||
| GBA001758057 | 175 | 80 | 57 | Download | Download | ||
| GBA180180100 | 180 | 180 | 100 | Download | Download | ||
| GBA020010080 | 200 | 100 | 80 | Download | Download | ||
| GBA020014090 | 200 | 140 | 90 | Download | Download | ||
| GBA200230110 | 200 | 230 | 110 | Download | Download | ||
| GBA200230180 | 200 | 230 | 180 | Download | Download | ||
| GBA022012081 | 220 | 120 | 81 | Download | Download | ||
| GBA022012091 | 220 | 120 | 91 | Download | Download | ||
| GBA002508057 | 250 | 80 | 57 | Download | Download | ||
| GBA026016090 | 260 | 160 | 90 | Download | Download | ||
| GBA280180100 | 280 | 180 | 100 | Download | Download | ||
| GBA280230110 | 280 | 230 | 110 | Download | Download | ||
| GBA330230111 | 330 | 230 | 111 | Download | Download | ||
| GBA330230180 | 330 | 230 | 180 | Download | Download | ||
| GBA036012080 | 360 | 120 | 80 | Download | Download | ||
| GBA036016090 | 360 | 160 | 90 | Download | Download | ||
| GBA400230110 | 400 | 230 | 110 | Download | Download | ||
| GBA400230180 | 400 | 230 | 180 | Download | Download | ||
| GBA400310110 | 400 | 310 | 110 | Download | Download | ||
| GBA400310180 | 400 | 310 | 180 | Download | Download | ||
| GBA056016090 | 560 | 160 | 90 | Download | Download | ||
| GBA600230110 | 600 | 230 | 110 | Download | Download | ||
| GBA600310110 | 600 | 310 | 110 | Download | Download | ||
| GBA600310180 | 600 | 310 | 180 | Download | Download |
