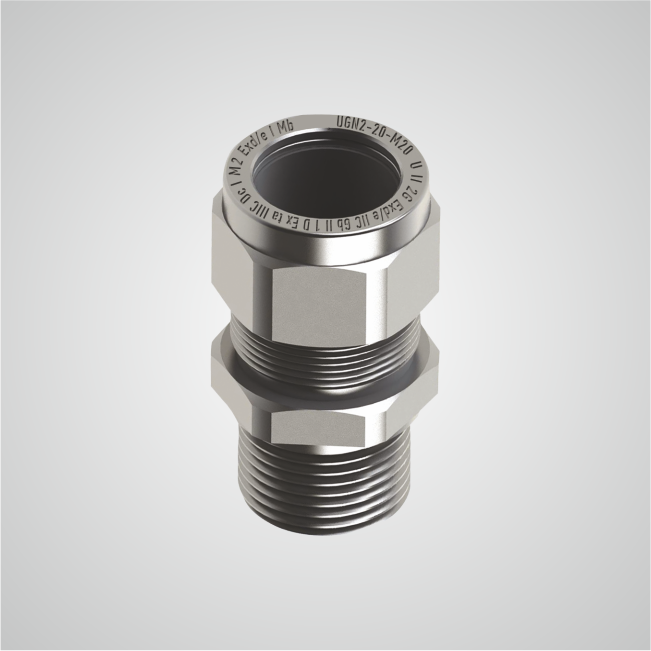

Unzen Series Unarmoured Ex Proof Cable Glands – UG

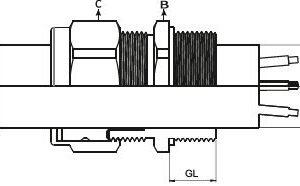

Drawings
Datasheet
Customize
Type : UAG (Un-ar) Unarmoured gland
Protection code : II 2G Ex d IIC Gb/II 2G Ex e II Gb I M2 Ex d I Mb I M2 Ex e I Mb Ex tb IIIC Db
Certificate : IEP 14 ATEX 0217U
Material : MS58 Brass with or without nickel plated, stainless steel AISI303 / 316L / Aluminium
Standards : EN 60079-0:2012, 60079-7:2007, 60079-1:2007 60079-31:2009
Protection class : IP68
Temperature Range : -30 °C +120 °C NBR
: -40 °C +100 °C NEOPRENE
: -60 °C +180 °C SILICONE
: -30 °C +100 °C TPE/V
Application area : ZONE1, ZONE2, ZONE21, ZONE22, Gas Group IIA. IIB, IIC
Cable type : Unarmoured


EX-PROOF CABLE GLANDS – UG SERIES

Product
Size
Product
Code
Standard
AG
AG NPT
B
GL min. mm
mm
Min
Max
C
B
16
XX-UGXX/16/X
M16x1,5
1/2″
6,1
11,6
15
20
24
20s
XX-UGXX/20s/X
M20sx1,5
1/2″
6,1
13,2
15
24
24
20
XX-UGXX/20/X
M20x1,5
1/2″
9,5
15,9
15
24
24
25
XX-UGXX/25/X
M25x1,5
3/4″
12,5
20,5
15
30
30
32
XX-UGXX/32/X
M32x1,5
1″
18,2
26,2
15
38
38
40
XX-UGXX/40/X
M40x1,5
11/4″
23,7
33,9
15
45
45
50
XX-UGXX/50/X
M50x1,5
11/2″
27,9
40,4
15
55
55
63s
XX-UGXX/63s/X
M63sx1,5
2″
40,4
51
15
70
70
63
XX-UGXX/63/X
M63x1,5
21/2″
47,2
55,9
15
70
80
75s
XX-UGXX/75s/X
M75sx1,5
21/2″
52,8
59
15
80
80
75
XX-UGXX/75/X
M75x1,5
3″
59,1
67,9
15
90
90
