Tubegland

Tubegland

0,00 €

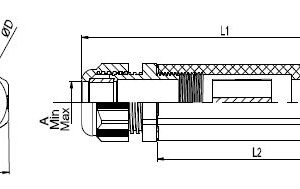

Drawings
Datasheet
Customize
Cap nut : Polyamide PA6 V2
Sealing ring : TPV
Gland Body : Polyamide PA6 V2
Body : Polyamide PA6 V2
Seperator : Polyamide PA6 V2
Inner terminal : Polyamide PA6 V2
O-ring : NBR
Connection Thread : Metric (EN 60423)
Protection Class : IP68 5 bar
Temperature : -20 °C +100 °C / -30 °C +150 °C (short term)
Benefits : UV resistance (on request)
: Various application & combinations
: Wide cable range
: Easy to assemble
: Halogen free
TUB-TERM / TUBEGLAND TERMINALS :
Product code : TBT
Material : Polyamide 6
Inside material : Stainless Steel
Temperature rating : -20 °C +100 °C
Available cable sizes : 0,5 / 0,75 / 1 / 1,5 / 2
Available cable pin size : 4 pin
Application area : Automative, lighting industries, led technologies


TUBEGLAND

AG Thread
Code With Seperator
Code With Terminal
L1 mm.
L2 mm..
D mm.
Wrench mm
A mm.
B mm.
With Seperator
With Terminal
M 25 x 1,5
KVPARM251117SKVPARM251117T
127
93,5
32,6
29
11-17
11-17
M 25 x 1,5
KVPARM251118SKVPARM251118T
127
93,5
32,6
29
11-17
13-18
M 25 x 1,5
KVPARM251114SKVPARM251114T
127
93,5
32,6
29
11-17
9-14
M 25 x 1,5
KVPARM251116SKVPARM251116T
127
93,5
32,6
29
11-17
9-16
M 25 x 1,5
KVPARM251112SKVPARM251112T
127
93,5
32,6
29
11-17
6-12
M 25 x 1,5
KVPARM25914SKVPARM25914T
127
93,5
32,6
29
9-14
9-14
M 25 x 1,5
KVPARM251110SKVPARM251110T
127
93,5
32,6
29
11-17
4-10
M 25 x 1,5
KVPARM25910SKVPARM25910T
127
93,5
32,6
29
9-14
4-10
M 25 x 1,5
KVPARM25912SKVPARM25912T
127
93,5
32,6
29
9-14
6-12
M 25 x 1,5
KVPARM25916SKVPARM25916T
127
93,5
32,6
29
9-14
9-16
M 25 x 1,5
KVPARM25918SKVPARM25918T
127
93,5
32,6
29
9-14
13-18
M 25 x 1,5
KVPARM25917SKVPARM25917T
127
93,5
32,6
29
9-14
11-17
