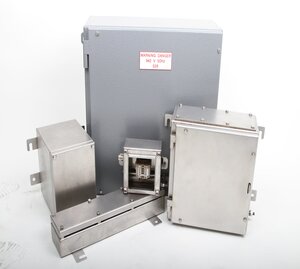

Stainless Steel Enclosure V4A
Highest corrosion resistance with our dust and waterproof stainless steel housings made of 1.4404 steel. Ideal for outdoor applications and wherever very harsh environmental conditions prevail. Certified as a fire protection housing up to 970 ° C. We offer you a total of 40 different sizes. Special sizes and mechanical processing on request. The stainless steel housings of our GB4S series are also available as Ex-certified high-voltage boxes (11KV in zone 1 and 15KV in zone 2). All stainless steel housings are RoHS and REACH compliant.
Price range: 250,18 € through 500,00 €
Technical characteristics:
- Stainless steel material 1.4404 / 316L
- Material thickness: 1.5mm or 2.0mm
- Surface orbital (standard)
- on request surface electropolished, glass bead blasted or lacquered / coated
- Protection class IP66, IP67, IP68 according to DIN EN 60529 (IP66 = standard)
- EX housing: available as empty or terminal housing
- up to 4 flange plates
- Internal / external earthing spigot M10
- welded wall mounting brackets
- Heavy-duty hinges from size GB4S0168218130
- Padlock door lock for cabinets with hinged doors
- Fire protection housing up to 970 ° C
- Ex high voltage housing up to 15KV
- Special sizes possible on request
| WMYB-No | Length (mm) | Width (mm) | Height (mm) | Add To Cart |
|---|---|---|---|---|
| GB4S0011011065 | 110 | 110 | 65 | |
| GB4S0014314393 | 143 | 143 | 93 | |
| GB4S0015015090 | 150 | 150 | 90 | |
| GB4S0190190100 | 190 | 190 | 100 | |
| GB4S0193193186 | 193 | 193 | 186 | |
| GB4S0168218130 | 168 | 218 | 130 | |
| GB4S0168218210 | 168 | 218 | 210 | |
| GB4S0218377156 | 218 | 377 | 156 | |
| GB4S0218377210 | 218 | 377 | 210 | |
| GB4S0229155130 | 229 | 155 | 130 | |
| GB4S0260265150 | 260 | 265 | 150 | |
| GB4S0260265200 | 260 | 265 | 200 | |
| GB4S0306306150 | 306 | 306 | 150 | |
| GB4S0306306200 | 306 | 306 | 200 | |
| GB4S0350265150 | 350 | 265 | 150 | |
| GB4S0350265200 | 350 | 265 | 200 | |
| GB4S0377377156 | 377 | 377 | 156 | |
| GB4S0377377210 | 377 | 377 | 210 | |
| GB4S0458388150 | 458 | 388 | 150 | |
| GB4S0458388200 | 458 | 388 | 200 | |
| GB4S0480480150 | 480 | 480 | 150 | |
| GB4S0480480203 | 480 | 480 | 203 | |
| GB4S0527427156 | 527 | 427 | 156 | |
| GB4S0527527156 | 527 | 527 | 156 | |
| GB4S0527527210 | 527 | 527 | 210 | |
| GB4S0550360150 | 550 | 360 | 150 | |
| GB4S0550360200 | 550 | 360 | 200 | |
| GB4S0600600210 | 600 | 600 | 210 | |
| GB4S0762508150 | 762 | 508 | 150 | |
| GB4S0762508200 | 762 | 508 | 200 | |
| GB4S0827577156 | 827 | 577 | 156 | |
| GB4S0827577210 | 827 | 577 | 210 | |
| GB4S0827577300 | 827 | 577 | 300 | |
| GB4S0914610203 | 914 | 610 | 203 | |
| GB4S0977677156 | 977 | 677 | 156 | |
| GB4S0977677211 | 977 | 677 | 211 | |
| GB4S0977677300 | 977 | 677 | 300 | |
| GB4S1177777156 | 1177 | 777 | 156 | |
| GB4S1177777210 | 1177 | 777 | 210 | |
| GB4S1177777300 | 1177 | 777 | 300 |
