Nippling

Type	:	NP TYPE NIPPLE
Protection code	:	I M2 Ex db I Mb / I M2 Ex eb I Mb II 2G Ex db IIC Gb II 2G Ex eb II Gb II 1D Ex ta IIIC Da
Certificate	:	IEP 15 ATEX 0333U
Material	:	Brass, brass with nickel plated, stainless steel
O-ring	:	NBR / Silicon ( on request)
Temperature range	:	-40 °C +100 °C
Protection class	:	IP66-IP68
Application area	:	ZONE1, ZONE 2, ZONE 21, ZONE 22 Gas groups IIA , IIB , IIC

EX-PROOF ACCESSORIES – NIPEL METRIC

Product Size	Product Code	GL min. mm	SW mm
M12 x 1.5	XX-TOXX – M12	15	6
M16 x 1.5	XX-TOXX – M16	15	8
M20 x 1.5	XX-TOXX – M20	15	10
M25 x 1.5	XX-TOXX – M25	15	10
M32 x 1.5	XX-TOXX – M32	15	10
M40 x 1.5	XX-TOXX – M40	15	10
M50 x 1.5	XX-TOXX – M50	15	10
M63 x 1.5	XX-TOXX – M63	15	10
M75 x 1.5	XX-TOXX – M75	15	14
M90 x 2	XX-TOXX – M90	20	14
M100 x 2	XX-TOXX – M100	20	14

NPT

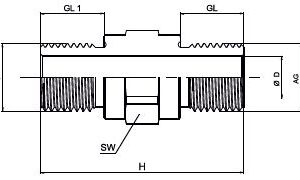

AG	Product Code	AG 1 mm	D mm	H mm	GL mm	GL 1 mm	SW mm
NPT 1/4″	XX-NPXX/N14m-M12m	M12 x 1,5	7	48	16	15	18
NPT 3/8″	XX-NPXX/N38m-M16m	M16 x 1,5	10	48	16	15	20
NPT 1/2″	XX-NPXX/N12m-M20m	M20 x 1,5	14	54	21	15	24
NPT 3/4″	XX-NPXX/N34m-M25m	M25 x 1,5	19	54	21	15	32
NPT 1″	XX-NPXX/N100m-	M32 x 1,5	26	61	26	18	36
NPT 11/4″	XX-NPXX/N114m-M40m	M40 x 1,5	33	68	28	18	45
NPT 11/2″	XX-NPXX/N112m-M50m	M50 x 1,5	40	68	28	18	55
NPT 2″	XX-NPXX/N200m-M63m	M63 x 1,5	52	68	28	18	70
NPT 21/2″	XX-NPXX/N212m-M75m	M75 x 1,5	62	85	38	21	85
NPT 3″	XX-NPXX/N300m-M90m	M90 x 1,5	75	85	38	21	100
NPT 4″	XX-NPXX/N400m-M110m	M110 x 1,5	100	85	38	16	120

NPT 1/4″	XX-NPXX/N14m-N14m	NPT 1/4″	77	50	16	16	18
NPT 1/4″	XX-NPXX/N14m-N38m	NPT 3/8″	12	50	16	16	20
NPT 3/8″	XX-NPXX/N38m-N38m	NPT 3/8″	12	50	16	21	20
NPT 3/8″	XX-NPXX/N38m-N12m	NPT 1/2″	15,5	55	16	21	24
NPT 1/2″	XX-NPXX/N12m-N12m	NPT 1/2″	15,5	62	21	21	24
NPT 1/2″	XX-NPXX/N12m-N34m	NPT 3/4″	19	62	21	21	32
NPT 3/4″	XX-NPXX/N34m-N34m	NPT 3/4″	19	62	21	26	32
NPT 3/4″	XX-NPXX/N34m-N100m	NPT 1″	25	67	21	26	36
NPT 1″	XX-NPXX/N100m-N100m	NPT 1″	25	72	26	28	36
NPT 1″	XX-NPXX/N100m-N114m	NPT 11/4″	33	74	26	28	45
NPT 11/4″	XX-NPXX/N114m-N114m	NPT 11/4″	40	78	28	28	45
NPT 11/2″	XX-NPXX/N112m-N112m	NPT 11/2″	52	78	28	28	55
NPT 2″	XX-NPXX/N200m-N200m	NPT 2″	62	78	28	38	65
NPT 21/2″	XX-NPXX/N212m-N212m	NPT 21/2″	75	102	38	38	80
NPT 3″	XX-NPXX/N300m-N300m	NPT 3″	100	102	38	38	95
NPT 4″	XX-NPXX/N400m-N400m	NPT 4″	18	102	38		120
