Industrial Type Unarmoured Double Compression Cable Glands

Industrial Type Unarmoured Double Compression Cable Glands

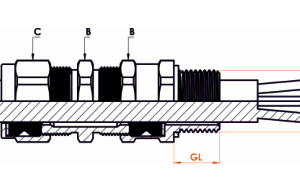

Drawings
Datasheet
Customize
Type : WUDCG (Double compression unarmoured gland)
Certificate : Gost-CE-Rohs-ISO9001-14001-Ohsas 18001
Material : MS58 brass with or without nickel plated stainless steel AISI303 / 316L / Aluminium
Standards : EN 60079-0:2012, 60079-1:2007, 60079-1:2007 60079-31:2009
Protection class : IP66 / 68
Temperature range : -30 °C +120 °C NBR
: -40 °C +100 °C NEOPRENE
: -60 °C +180 °C SILICONE
: -30 °C +100 °C TPE/V
Cable type : Unarmoured


UNARMOURED CABLE GLANDS – DOUBLE COMPRESSION

Product
Size
Product
Code
Standard
AG
AG
NPT
B
GL
Anahtar
B Min
B Max
min.mm
C
B
16
XX-WUDCGXX-16-X
M16x1,5
1/2″
6,1
11,6
15
20
20
20s
XX-WUDCGXX-20s-X
M20sx1,5
1/2″
6,1
13,2
15
24
24
20
XX-WUDCGXX-20-X
M20x1,5
1/2″
9,5
15
15
24
24
25
XX-WUDCGXX-25-X
M25x1,5
3/4″
12,5
20
15
30
30
32
XX-WUDCGXX-32-X
M32x1,5
1″
18,2
26,2
15
38
38
40
XX-WUDCGXX-40-X
M40x1,5
11/4″
23,7
33,9
15
45
45
50
XX-WUDCGXX-50-X
M50x1,5
11/2″
27,9
40,4
15
55
55
63s
XX-WUDCGXX-63s-X
M63sx1,5
2″
40,4
51
15
70
70
63
XX-WUDCGXX-63-X
M63x1,5
21/2″
47,2
55,9
15
70
70
75s
XX-WUDCGXX-75s-X
M75sx1,5
21/2″
52,8
59
15
80
80
75
XX-WUDCGXX-75-X
M75x1,5
3″
59,1
67,9
15
90
90
