Industrial Type Armoured Cable Glands – CW Series

Type	:	CW (Single compression gland)
Material	:	Brass with or without nickel plated
Standards	:	BS 6121
Protection class	:	IP66 & IP67
Temperature range	:	-20 °C +80 °C
Thread options	:	Metric , NPT , BSP & PG
Application	:	For indoor or outdoor use with all types of SWA cables
Accessories	:	Matching accessories available like PVC Shrouds locknuts & earth tag
Function	:	CW type glands provide a seal on the outer sheath and an armour sp

INDUSTRIAL TYPE CABLE GLANDS – CW SERIES

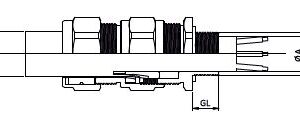

Product Size	Product Code	Standard AG	AG NPT	B		GL
				Min	Max
20s	XX-CW-M20s	M20 x 1,5	1/2″	11,5	15,5	10
20L	XX-CW-M20L	M20 x 1,5	1/2″	14	20,5	10
25s	XX-CW-M25s	M25 x 1,5	3/4″	18	24	10
25L	XX-CW-M25L	M25 x 1,5	3/4″	20	27,2	10
32L	XX-CW-M32L	M32 x 1,5	1″	26,3	33,5	10
40s	XX-CW-M40s	M40 x 1,5	11/4″	31,5	39,5	13
40L	XX-CW-M40L	M40 x 1,5	11/4″	32	40	13
50s	XX-CW-M50s	M50 x 1,5	11/2″	38,2	46,3	13
50L	XX-CW-M50L	M50 x 1,5	2″	44	52,6	13
63s	XX-CW-M63s	M63 x 1,5	2″	50,1	59	14
63L	XX-CW-M63L	M63 x 1,5	21/2″	56	65,3	14
75s	XX-CW-M75s	M75 x 1,5	21/2″	62	71,6	15
75L	XX-CW-M75L	M75 x 1,5	3″	68	78	15
90L	XX-CW-M90L	M90 x 2	3″	80,5	91	20
