EX- Proof Stopper Plug - To Series

EX- Proof Stopper Plug – To Series

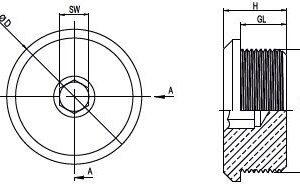

Drawings
Datasheet
Customize
Type : TO TYPE STOPPER PLUG
Protection code : I M2 Ex db I Mb / I M2 Ex eb I Mb II 2G Ex db IIC Gb II 2G Ex eb II Gb II 1D Ex ta IIIC Da
Certificate : IEP 15 ATEX 0333U
Material : Brass, brass with nickel plated, stainless steel
Standards : EN 60079-0 2012 /60079-1 2007/60079-7 2007 60079-31 2009
O-ring : NBR / Silicone
Temperature range : -40 °C +100 °C
Protection class : IP66-IP68
Application area : ZONE1 , ZONE 2, ZONE 21 , ZONE 22 Gas groups IIA , IIB , IIC


EX-PROOF ACCESSORIES – STOPPER PLUG TO SERIES

Product
Size
Product
Code
GL
min. mm
SW mm
M12 x 1.5
XX-TOXX – M12
15
6
M16 x 1.5
XX-TOXX – M16
15
8
M20 x 1.5
XX-TOXX – M20
15
10
M25 x 1.5
XX-TOXX – M25
15
10
M32 x 1.5
XX-TOXX – M32
15
10
M40 x 1.5
XX-TOXX – M40
15
10
M50 x 1.5
XX-TOXX – M50
15
10
M63 x 1.5
XX-TOXX – M63
15
10
M75 x 1.5
XX-TOXX – M75
15
14
M90 x 2
XX-TOXX – M90
20
14
M100 x 2
XX-TOXX – M100
20
14

NPT

Product
Size
Product
Code
GL
min. mm
SW mm
NPT 1/4″
XX-TOXX – N14
15
6
NPT 3/8″
XX-TOXX – N38
15
8
NPT 1/2″
XX-TOXX – N12
15
10
NPT 3/4″
XX-TOXX – N34
15
10
NPT 1″
XX-TOXX – N100
15
10
NPT 11/4″
XX-TOXX – N114
18
10
NPT 11/2″
XX-TOXX – N112
18
10
NPT 2″
XX-TOXX – N200
18
10
NPT 21/2″
XX-TOXX – N212
28
14
NPT 3″
XX-TOXX – N300
28
14
NPT 4″
XX-TOXX – N400
28
14

GAS

Product
Size
Product
Code
GL
min. mm
SW mm
G 1/4″
XX-TOXX – G14
15
6
G 3/8″
XX-TOXX – G38
15
8
G 1/2″
XX-TOXX – G12
15
10
G 3/4″
XX-TOXX – G34
15
10
G 1″
XX-TOXX – G100
15
10
G 11/4″
XX-TOXX – G114
15
10
G 11/2″
XX-TOXX – G112
15
10
G 2″
XX-TOXX – G200
15
10
G 21/2″
XX-TOXX – G212
20
14
G 3″
XX-TOXX – G300
20
14
G 4″
XX-TOXX – G400
20
14

PG

Product
Size
Product
Code
GL
min. mm
SW mm
PG7
XX-TOXX – P7
15
6
PG9
XX-TOXX – P9
15
8
PG11
XX-TOXX – P11
15
10
PG13,5
XX-TOXX – P13
15
10
PG16
XX-TOXX – P16
15
10
PG21
XX-TOXX – P21
15
10
PG29
XX-TOXX – TOXX – P29
15
10
PG36
XX-TOXX – P36
15
10
PG42
XX-TOXX – P42
15
10
PG48
XX-TOXX – P48
15
10
